ARBITON underlay SECURA HEAT VINYL CLICK 5mm XPS – Energy Saving Floor System
5,49 €/m2

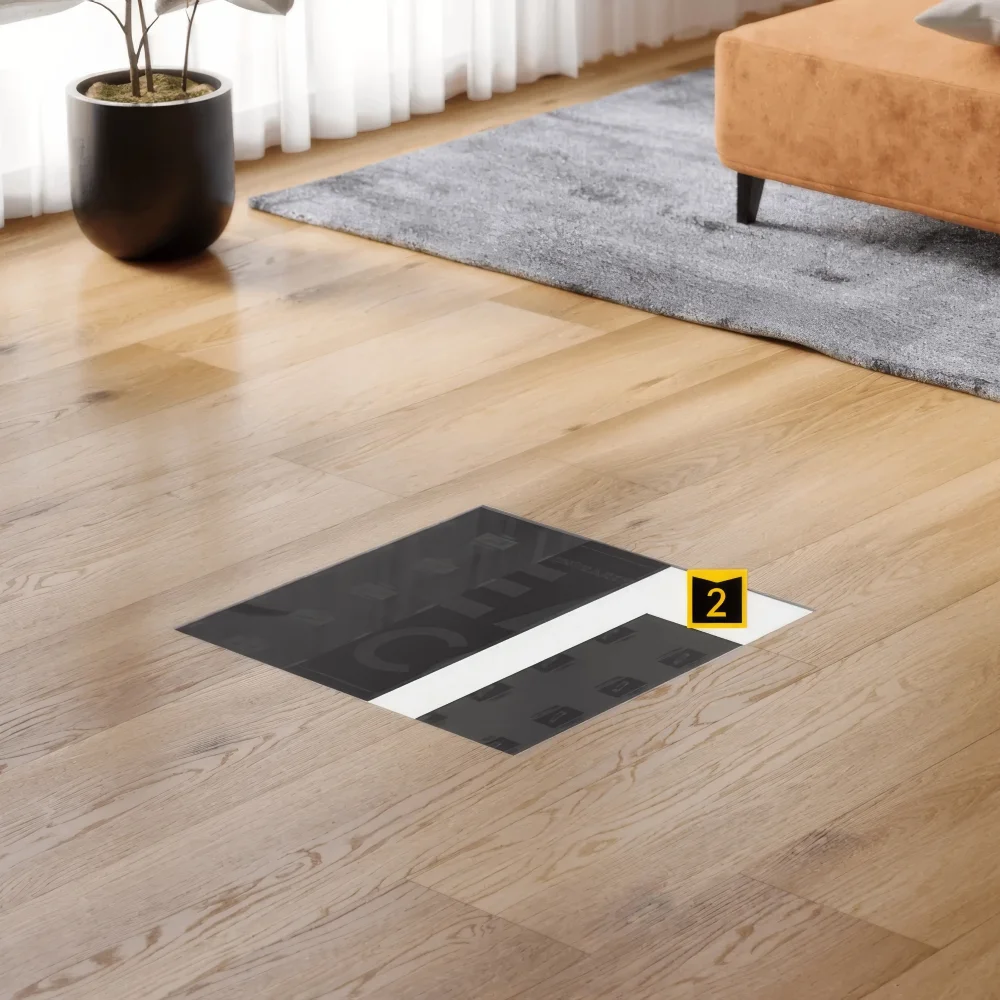

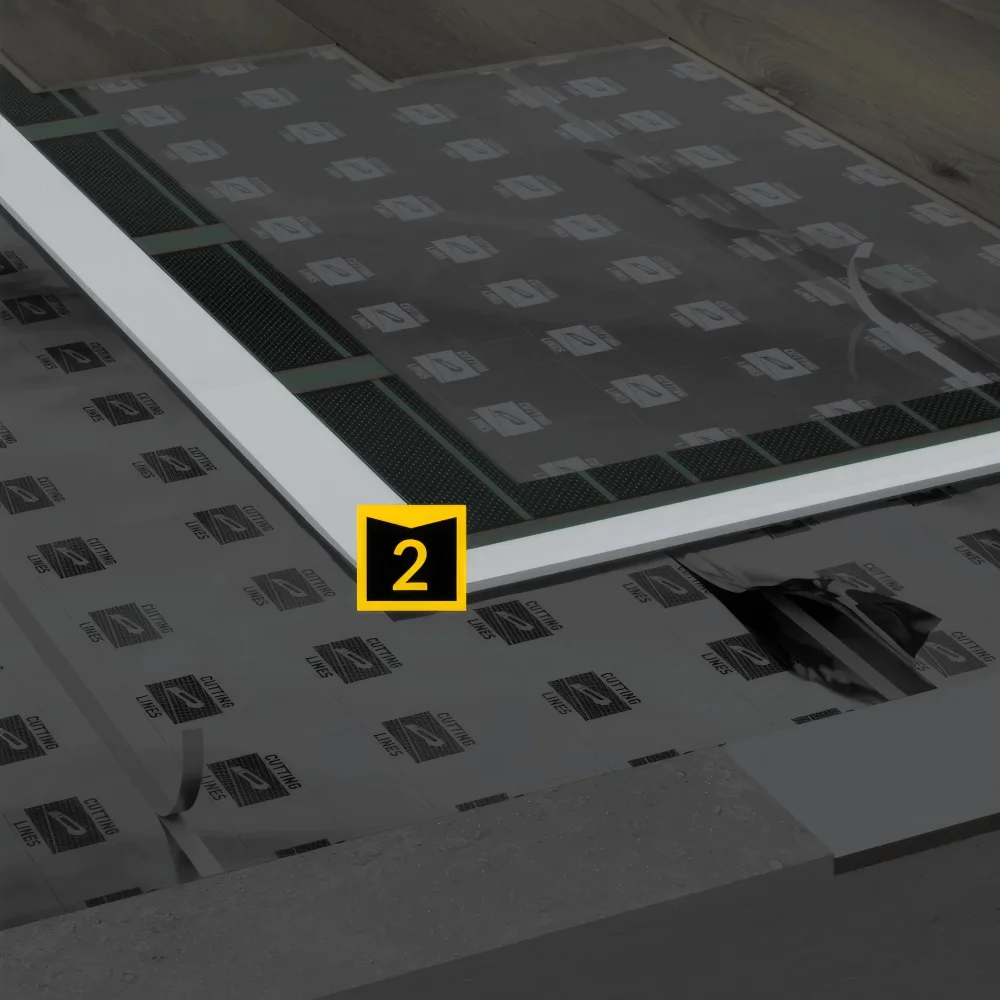

A modern solution for underfloor heating: the Arbiton Energy Saving Flooring System, comprising 1. a vapour barrier, 2. an underlay and 3. a protective film.
Free delivery from 240 €
You can already have 16.10.2026 at home
Your payment is secure Product description
ARBITON SECURA HEAT VINYL CLICK 5 mm is a specialised thermal insulation underlay made from extruded polystyrene (XPS), designed for underfloor heating systems using infrared heating films. It forms part of the innovative ‘ARBITON’ Energy Saving Flooring System, which helps to utilise heat efficiently and minimise heat loss into the subfloor.
Thanks to its high compressive strength of 500 kPa, it provides stable support for the heating foil and the floor covering. Its thermal resistance of 0.17 m²K/W is designed to limit heat loss into the subfloor and promote its efficient use when heating the room.
Key benefits
- Effective thermal insulation – helps to limit heat loss downwards and promotes heat transfer into the room.
- High compressive strength (500 kPa) – ensures the stability of the floor structure.
- Optimised thermal resistance (0.17 m²K/W) – when installed beneath an infrared heating foil, it helps to reduce heat loss into the subfloor.
- Impact noise reduction of up to 18 dB – significantly reduces the transmission of footfall and stomping noises to rooms on the floor below.
- Compensation for minor local unevenness of up to 3 mm – helps to create a stable subfloor.
- System solution – designed for the ARBITON Energy Saving Flooring System.
Equivalents
| Product | Selected product  In stock at 299.52 m2 ARBITON underlay SECURA HEAT VINYL CLICK 5mm XPS – Energy Saving Floor System 5,49 € / m2 incl. VAT | Alternative product  In stock at 630 m2 PUR 1.0 H2O underlay, 1 mm PUM 6,79 € / m2 incl. VAT | Alternative product  In stock at 1649 m2 Akustik-Protect 100 1.8 mm underlay with vapour barrier 6,99 € / m2 incl. VAT | Alternative product  In stock at 96 m2 AFIRMAX LVT SOLID STEP PROFESSIONAL 1 mm PU underlay with vapour barrier 5,29 € / m2 incl. VAT | Alternative product  In stock at 537.5 m2 AFIRMAX SPC&VINYL SMART 1 mm 3-in-1 XPS underlay with vapour barrier and adhesive tape 3,19 € / m2 incl. VAT | Alternative product  In stock at 5130 m2 SOLIDSTEPnd ALL FLOOR 100 1.1 mm PUM underlay with vapour barrier 4,89 € / m2 incl. VAT | |
|---|---|---|---|---|---|---|---|
| Brand | Arbiton | Organic | Parador | Afirmax | Afirmax | SolidStep | |
| Total thickness | 5 mm | 1 mm | 1.8 mm | 1 mm | 1 mm | 1.1 mm | |
| Format | 1200 x 600 mm | 1 x 10 m | 1 x 8.5 m | 1 x 6 m | 1.18 x 5.3 m | 1 x 9 m | |
| Integrated vapour barrier (SD min. 75 m) | NO | NO | YES | YES | YES | YES | |
| Material | Extruded polystyrene (XPS) | Polyurethane-mineral PUM | Polyurethane-mineral with aluminium foil | Polyurethane-mineral (PU/minerals + PET) | Extruded polystyrene XPSHD + PET | Polyurethane-mineral (PU/minerals + PET) | |
| Usage | Under ‘floating floors’ – laminate, timber, solid vinyl, vinyl on an HDF core | Under ‘floating floors’ – laminate, timber, composite, SPC, solid vinyl, vinyl on an HDF substrate | Under ‘floating floors’ – laminate, timber, composite, SPC, solid vinyl, vinyl on an HDF substrate | Under ‘floating floors’ – laminate, timber, composite, SPC, solid vinyl, vinyl on an HDF substrate | Under ‘floating floors’ – laminate, timber, composite, SPC, solid vinyl, vinyl on an HDF substrate | Under ‘floating floors’ – laminate, timber, composite, SPC, solid vinyl, vinyl on an HDF substrate | |
| Colour | Dark grey | Blue | Grey + Silver film | Yellow | Dark grey | Yellow | |
| Packaging type | Sheets | Scroll | Scroll | Scroll | Fold-out / accordion | Scroll | |
| Compressive load capacity CS [t/m²] | 51 | 53 | 24 | 70 | 40 | 70 | |
| Impact sound reduction IS [dB] (in the room below) | 18 | 14 | 18 | 17 | 18 | 14 | |
| Product type | Underlay for floating floors – SPC, LVT vinyl, composite, laminate, timber | Underlay for floating floors – SPC, LVT vinyl, composite, laminate, timber | Underlay for floating floors – SPC, LVT vinyl, composite, laminate, timber | Underlay for floating floors – SPC, LVT vinyl, composite, laminate, timber | Underlay for floating floors – SPC, LVT vinyl, composite, laminate, timber | Underlay for floating floors – SPC, LVT vinyl, composite, laminate, timber | |
| Domestic warranty | - | 2 years | - | - | - | - | |
| Underfloor heating – suitability | Suitable | Suitable | Suitable | Suitable | Suitable | Suitable | |
| Thermal resistance R [m² K/W] | 0.17 | 0.01 | 0.01 | 0.005 | 0.03 | 0.005 | |

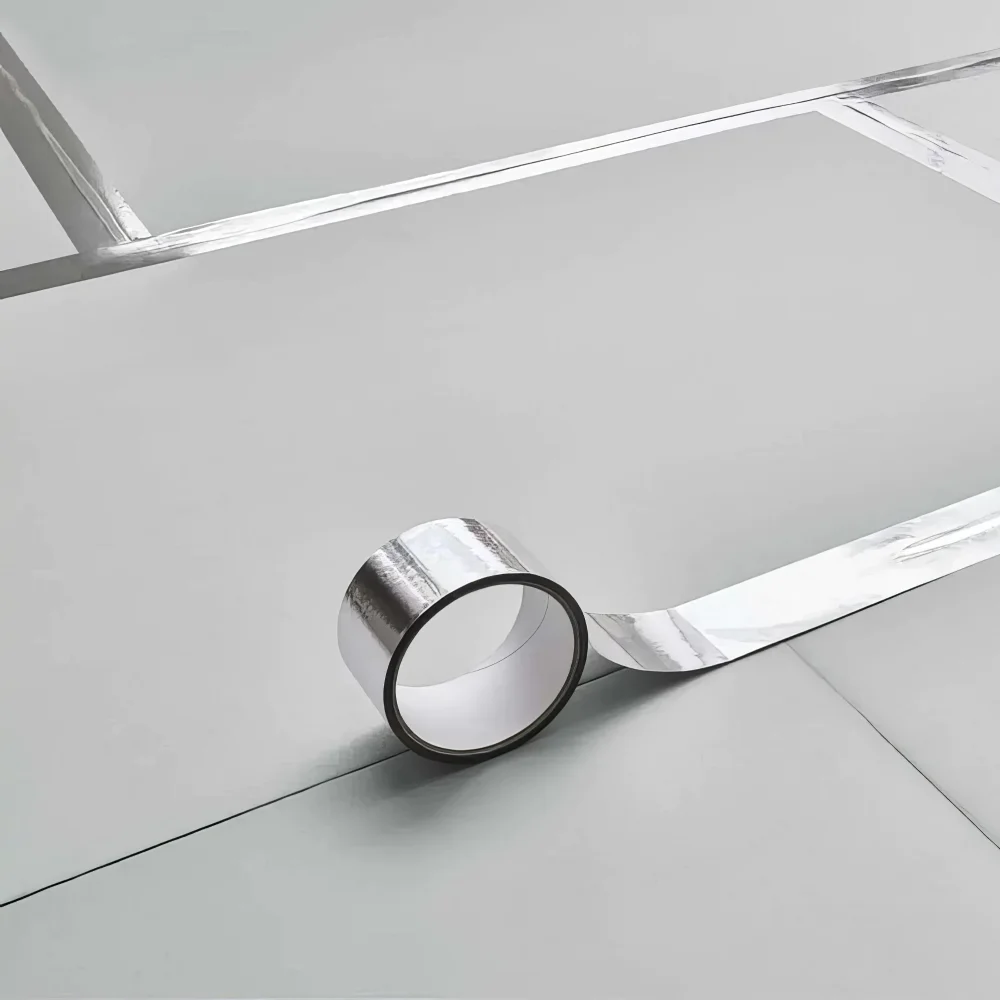

| Installation | - | With the glossy blue side facing upwards (the joints of the underlay must be sealed with aluminium/metallic tape) | Silver side up | Glossy side facing upwards (the joints of the underlay must be sealed with aluminium/metallic tape) | - | Glossy side facing upwards (the joints of the underlay must be sealed with aluminium/metallic tape) | |
| Items per pallet | - | 54 | - | 48 | - | 40 | |
| Room noise reduction RWS [%] | - | 27 | 24 | - | - | - | |
| PC unevenness compensation [mm] | 3 | 0.2 | 0.98 | 0.6 | 0.8 | 0.6 | |
| Indoor air emissions | A+ | - | A+ | A+ | A+ | A+ | |
| Packaging on a pallet | 54 | - | 40 | - | 75 | - | |
| Moisture protection of the subfloor SD [m] | - | - | >75 (approx. 100) | 75 | 75 | 75 | |
| Packaged in bulk | - | - | - | - | 25 | - | |
| Room noise reduction RWS [Sone] | 62 | - | - | 62 | 63 | 62 | |
| Items per pack | 8 | - | - | - | - | 1 |
